Lawn Mowers HR HR21 HR21K2 SXA HR21K2-1200141-9999999 21K2S TENSIONER ARM@V-BELT - Ron Ayers Motorsports

  1. Product Lines
  2. Lawn Mowers
  3. HR
  4. HR21
  5. HR21K2 SXA HR21K2-1200141-9999999
  6. 21K2S TENSIONER ARM@V-BELT

WARNING: California Prop 65 Information

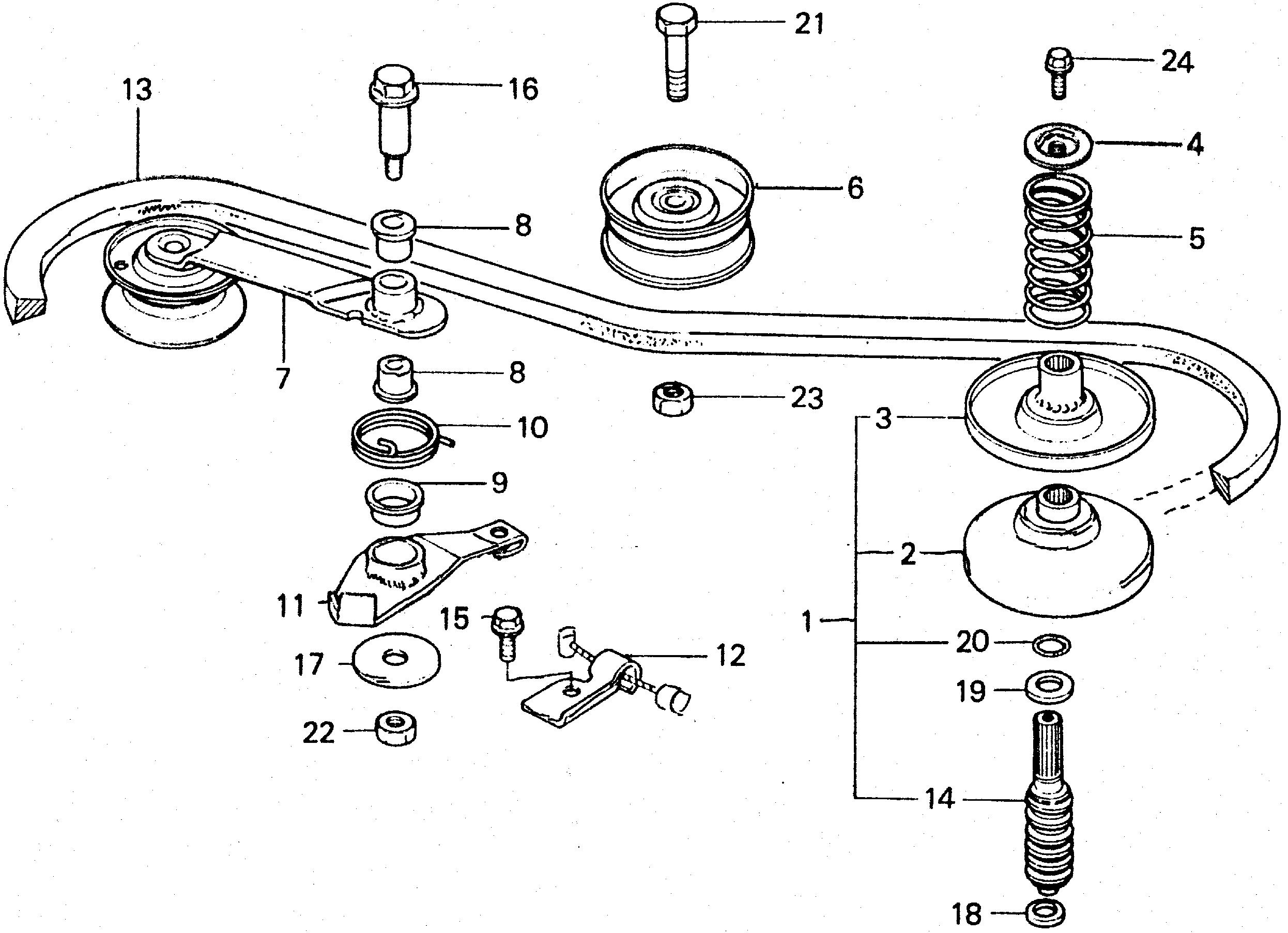

Ref No
Part Number
Description
Serial Range
Qty
Price
Ref No
1
Part Number
 06221-960-305
Description
 PULLEY KIT, DRIVE (NOT AVAILABLE)
Serial Range
 1000001 - 9999999
Ref No
2
Part Number
 22110-960-771
Description
 FACE, DRIVEN
Serial Range
 1000001 - 9999999
Qty
Price
 $30.32
Ref No
3
Part Number
 22120-960-770
Description
 FACE, MOVABLE DRIVEN
Serial Range
 1000001 - 9999999
Qty
Price
 $24.46
Ref No
4
Part Number
 22124-952-770
Description
 SEAT, SPRING (NOT AVAILABLE)
Serial Range
 1000001 - 9999999
Ref No
5
Part Number
 22125-952-770
Description
 SPRING, DRIVEN FACE
Serial Range
 1000001 - 9999999
Qty
Price
 $7.28
Ref No
6
Part Number
 22510-952-770
Description
 ROLLER
Serial Range
 1000001 - 9999999
Ref No
7
Part Number
 22520-960-770
Description
 ARM, TENSIONER (NOT AVAILABLE)
Serial Range
 1000001 - 9999999
Ref No
8
Part Number
 22524-952-770
Description
 BUSH, TENSIONER ARM
Serial Range
 1000001 - 9999999
Qty
Price
 $10.54
Ref No
9
Part Number
 22525-952-770
Description
 BUSH, CHANGE ARM
Serial Range
 1000001 - 9999999
Ref No
10
Part Number
 22526-952-770
Description
 SPRING, TENSIONER ARM (NOT AVAILABLE)
Serial Range
 1000001 - 9999999
Qty
Price
 $5.81
Ref No
11
Part Number
 22531-960-770
Description
 ARM, CHANGE (NOT AVAILABLE)
Serial Range
 1000001 - 9999999
Qty
Price
 $14.30
Ref No
12
Part Number
 22536-960-770
Description
 HOLD, CHANGE WIRE (NOT AVAILABLE)
Serial Range
 1000001 - 9999999
Ref No
13
Part Number
 23161-952-771
Description
 V-BELT (35)
Serial Range
 1000001 - 9999999
Qty
Price
 $35.82
Ref No
14
Part Number
 23411-960-770
Description
 GEAR, DRIVE
Serial Range
 1000001 - 9999999
Ref No
15
Part Number
 90013-883-000
Description
 BOLT, FLANGE (6X12) (CT200)
Serial Range
 1000001 - 9999999
Ref No
16
Part Number
 90104-952-770
Description
 BOLT, TENSIONER ARM
Serial Range
 1000001 - 9999999
Qty
Price
 $5.83
Ref No
17
Part Number
 90401-952-770
Description
 WASHER, PLAIN (8MM) (NOT AVAILABLE)
Serial Range
 1000001 - 9999999
Ref No
18
Part Number
 90443-844-000
Description
 WASHER, THRUST (8MM) (NOT AVAILABLE)
Serial Range
 1000001 - 9999999
Qty
Price
 $0.92
Ref No
19
Part Number
 90459-107-000
Description
 WASHER, THRUST (12MM)
Serial Range
 1000001 - 9999999
Qty
Price
 $1.91
Ref No
20
Part Number
 91205-952-771
Description
 O-RING (11.7X1.2) (NOT AVAILABLE)
Serial Range
 1000001 - 9999999
Ref No
21
Part Number
 92101-10028-0A
Description
 BOLT, HEX. (10X28)
Serial Range
 1000001 - 9999999
Ref No
22
Part Number
 94001-08000-0S
Description
 NUT, HEX. (8MM)
Serial Range
 1000001 - 9999999
Qty
Price
 $1.76
Ref No
23
Part Number
 94001-10000-0S
Description
 NUT, HEX. (10MM)
Serial Range
 1000001 - 9999999
Qty
Price
 $1.94
Ref No
24
Part Number
 95701-06012-00
Description
 BOLT, FLANGE (6X12)
Serial Range
 1000001 - 9999999
Qty
Price
 $2.18
